Tongue And Groove Cold Storage Wall Panels
Details
Tongue and groove cold storage wall panels are an important part of cold storage construction, providing both insulation and internal space separation. Made with a high-performance polyurethane core and durable metal facings, the panels offer excellent thermal insulation, airtightness, and moisture resistance. The tongue-and-groove joint design helps create a tight connection between panels, reducing cold air leakage and improving overall insulation performance. Available in different thicknesses and surface materials, these panels are widely used in cold rooms, freezer rooms, food processing facilities, and other temperature-controlled buildings.
Category
Cold Room Wall Sandwich Panels
Share to
Description

Shandong Lantian New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of tongue and groove cold storage wall panels in China. If you're going to buy durable tongue and groove cold storage wall panels made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.



Products specification





0506

Product Name

100MM cold room panels

Facing Material

PPGI/Stainless Steel

Back Material

Nano PPGI or Stainless Steel

Core Material

PIR (Polyisocyanurate) Foam

Metal thickness

0.4-0.8mm

Core thickness

≥100mm

Effective Width

500-1130mm

Panel Length

≤11800mm

Thermal Conductivity

≤0.022 W/(m·K)

Color

Usually white or white grey

Production Capacity

8000m/day

MOQ

500m

Packaging

Corner protector,PE Film Packaging.

Delivery time

Within 25 days

Payments

FOB:30% TT in advance,balance before delivery.

CFR/CIF:30%T/T in advance,balance against copy of B/L.

Customized size 50% T/T in advance,balance before delivery.



Advantage of cold room insulation panels





Customized Insulation Solution

Panel dimensions and thicknesses can be customized according to project requirements, providing flexible solutions for different cold storage environments.



Hygienic & Easy Maintenance

Large effective panel widths reduce the number of joints, minimizing dust accumulation and making the surface easier to clean.



Enhanced Joint Sealing

PU foam applied at panel connections fills gaps between panels, improving airtightness, reducing thermal bridging, and preventing moisture infiltration.

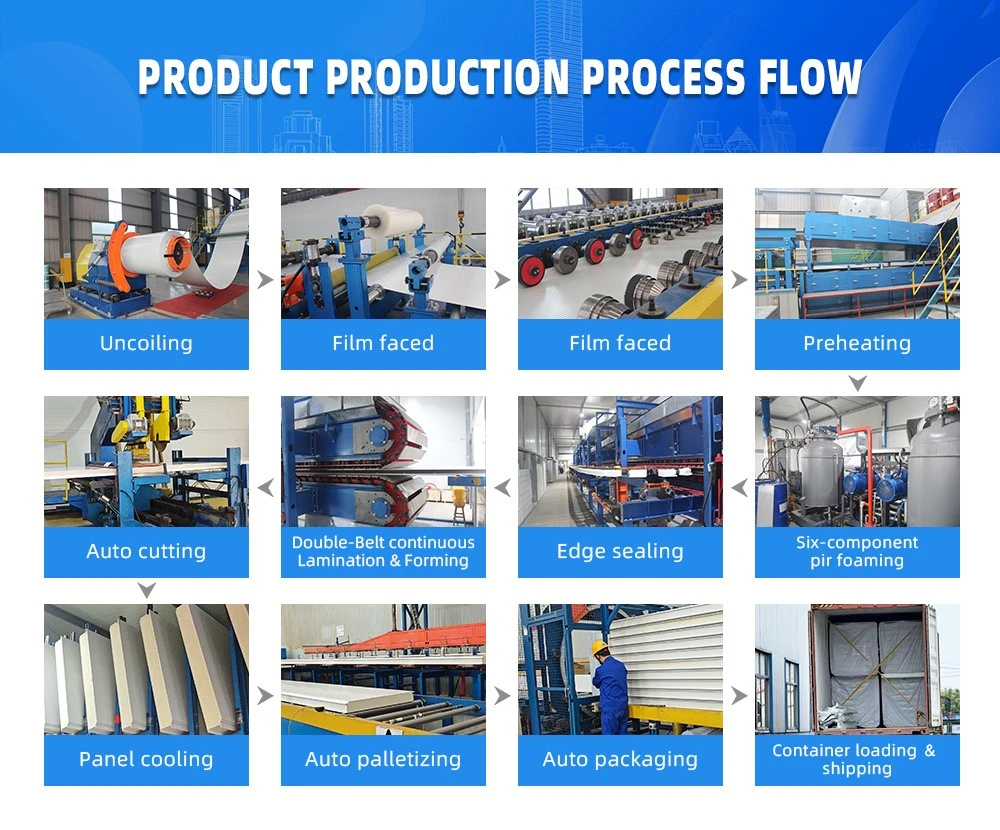

Factory Production Process





0506



FAQ



Q: What thickness of cold room panels should I choose?

A: The thickness of cold room panels at least 100mm,some freezer rooms need 150mm even 200mm pir sandwich panels.

Q: Which kind of color should i choose?

A: The PPGI color usually is white grey with large stock in factory,this color can reduce energy consumption.

Q: Can the panel size be customized?

A: Yes,the width of panels from 500-1130mm,but if not special corner,we suggest 1120mm is the best choice with cheaper price,the length can be customized at any length.

Q: Which kind of material should i choose for the cold storage wall panels?

A: PPGI,Nano PPGI for inner metal,stainless steel usually used for the cold storage,some high grade medicine and food industry use Anti-bacterial steel sheet.

Q: What's the MOQ for the cold storage wall panels?

A: Our MOQ is 500m.



modular-1
Need Help Choosing the Right Cold Room Panel?
