Shandong Lantian New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of machine made clean room wall panels in China. If you're going to buy durable machine made clean room wall panels made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Products specification
|
Product Name |
Machine made clean room wall panels |
|
Facing Material |
PPGI |
|
Back Material |
PPGI |
|
Core Material |
Rock wool/Glass wool/Silicon/S-O-Mg/ |
|
Metal thickness |
0.4-0.8mm |
|
Core thickness |
50/75/100mm |
|
Effective Width |
950/1150mm |
|
GI frame edge |
0.6/0.7/0.8mm |
|
Panel Length |
Customized but less than 11800mm |
|
Thermal Conductivity |
≤0.022 W/(m·K) |
|
Color |
Usually white or white grey |
|
Production Capacity |
4000m/day |
|
MOQ |
500m |
|
Packaging |
Panels in pallets with belt. |
|
Delivery time |
Within 25 days. |
|
Payments |
30% T/T in advance,balance before delivery. |
Advantage of Clean room Partition Wall
Superior Cleanliness Performance
Featuring smooth, dense surfaces and tight tongue-and-groove joints, the panels effectively reduce dust accumulation and bacterial growth while facilitating easy cleaning and maintenance. They help maintain a clean and hygienic environment for food, pharmaceutical, and other industries.
01
Thermal Insulation & Energy Efficiency
With low thermal conductivity core materials such as rock wool and glass wool, the panels effectively reduce heat transfer, maintain stable indoor temperatures, and improve energy efficiency.
02
Moisture & Corrosion Resistance
Metal face sheets provide reliable moisture protection, while rock wool and magnesium oxide cores offer excellent moisture resistance. Stainless steel surfaces deliver superior corrosion resistance against disinfectants, making them suitable for demanding clean room environments.
03
Air Tightness & Sound Insulation
Combined with sealing systems, tight panel joints effectively limit dust penetration. Fibrous core materials also provide sound absorption, reducing noise from equipment and improving the working environment.
04
Excellent Fire Protection Performance
Featuring Class A non-combustible core materials such as rock wool and glass wool, the panels provide reliable fire resistance and help meet clean room fire safety requirements.
05

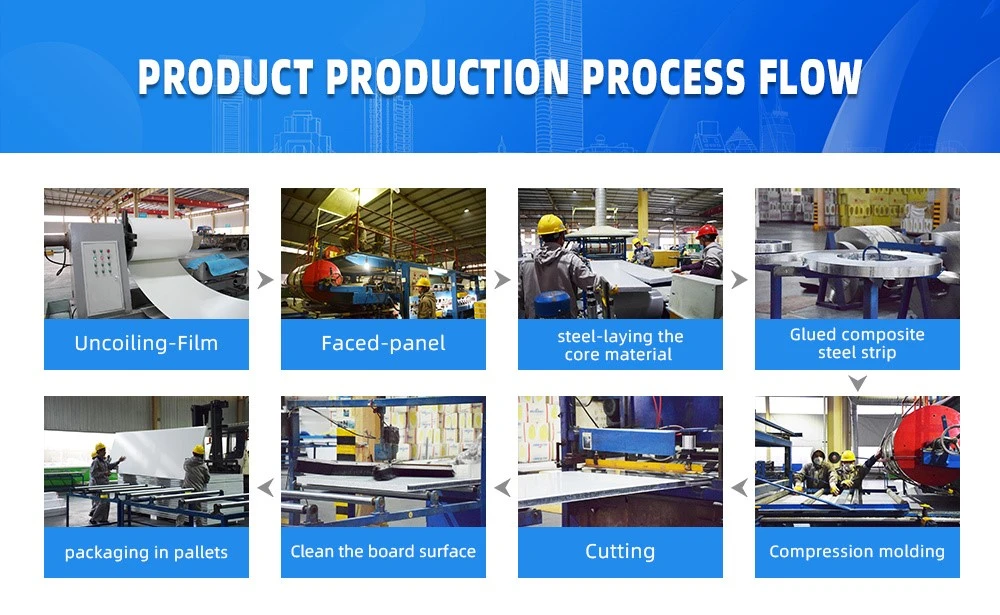

Factory Production Process
Quality Assurance
The company has continuously maintained ISO 9001, ISO 14001, and ISO 45001 management system certifications and follows these standards throughout its production management. Comprehensive quality control is implemented from raw material inspection and manufacturing processes to final product testing, ensuring stable quality and reliable performance of clean room panels. CE-certified products and a CNAS-accredited laboratory provide strong assurance of product quality and long-term reliable performance.
FAQ

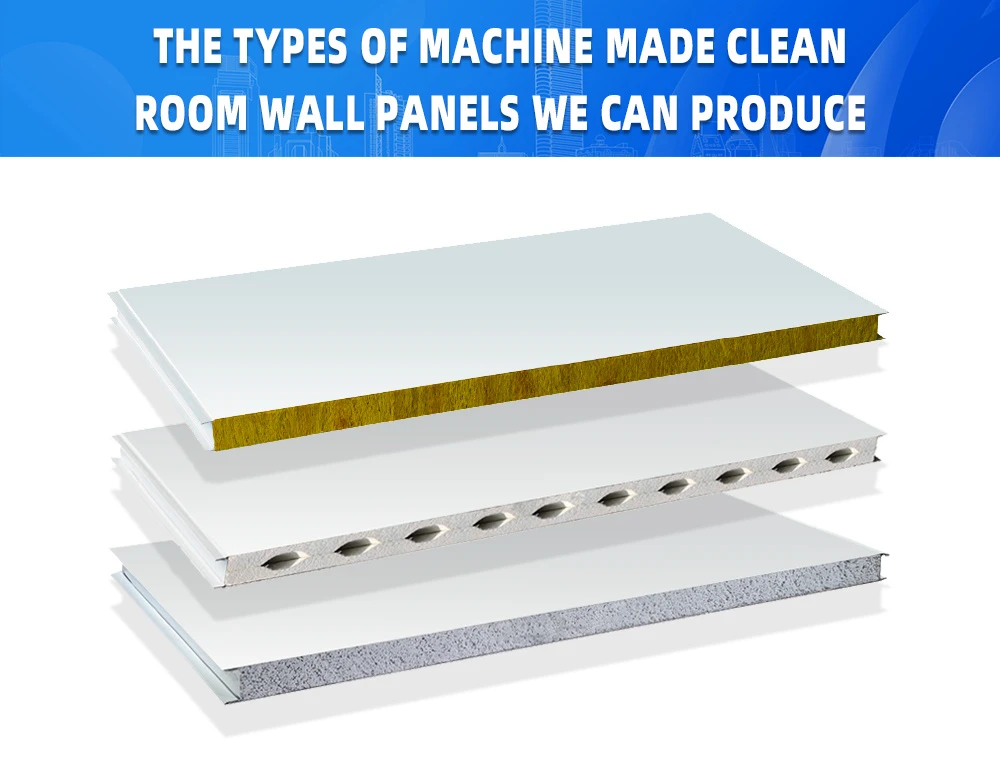

Q: What core materials are available for machine-made clean room panels?
A: Machine-made clean room panels are available with core materials such as rock wool, magnesium oxide board, and glass wool to meet different requirements for fire resistance and clean room performance.
Q: What industries are machine-made clean room panels used for?
A: Machine-made clean room panels are widely used in pharmaceutical, food processing, electronics, laboratories, medical facilities, and other controlled environments.
Q: Can machine-made clean room panels be customized?
A: Yes. Panel dimensions, surface materials, and core materials can be customized according to project requirements.
Q: What is the difference between machine-made and manual clean room panels?
A: Machine-made clean room panels feature standardized production, consistent quality, and high efficiency, while manual clean room panels offer greater flexibility for customized dimensions, special structures, and complex applications.
Q: What is the delivery time for machine-made clean room panels?
A: The delivery time depends on product specifications, order quantity, and production schedule. We provide efficient production and reliable delivery support.
Delivery time
Within 25days after deposit.
Package:Corner protector,PE film wrapped or customized.
Payments:30% T/T in advance,balance before delivery.
Get a Customized Solution for Your Clean room Project?
