Shandong Lantian New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of rock wool wall sandwich panel in China. If you're going to buy durable rock wool wall sandwich panel made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Products specification
|
Product Name |
Rock wool wall sandwich panel |
|
Facing Material |
PPGI/Al-Mg-Mn |
|
Back Material |
PPGI |
|
Color |
Customized |
|
Metal thickness |
0.4-0.8mm |
|
Core thickness |
50/75/100mm |
|
Effective Width |
950mm and 1150mm |
|
Density |
80-120kg/m³ |
|
Thermal Conductivity |
≤0.04-0.055 W/(m·K) |
|
Temperature Resistance |
800℃ |
|
Length |
Less than 11800mm |
|
Production Capacity |
5000m/day |
|
MOQ |
500m |
|
Packaging |
Panels in pallets with belt. |
|
Delivery time |
Within 25 days. |
|
Payments |
30% T/T in advance,balance before delivery. |
Advantage of Rock wool wall sandwich panel
Excellent Fire Resistance for High Fire-Safety Requirements
Using rock wool as the core material, the panel provides excellent non-combustible performance and is suitable for buildings with strict fire protection requirements.
01
Hydrophobic Rock Wool for Better Moisture Resistance
High-density hydrophobic rock wool helps reduce water absorption and maintains stable performance in humid and rainy environments.
02
Sound Insulation for a More Comfortable Environment
The fiber structure of rock wool effectively absorbs sound and reduces noise transmission, making it suitable for buildings with higher acoustic requirements.
03
Stable Core Performance for Long-Term Reliability
Rock wool features stable properties and excellent durability, maintaining reliable fire protection performance during long-term use.
04
Excellent Overall Performance with High Cost Efficiency
Combining fire resistance, sound insulation, and durability, the panel provides a practical solution with a good balance between performance and project cost.
05

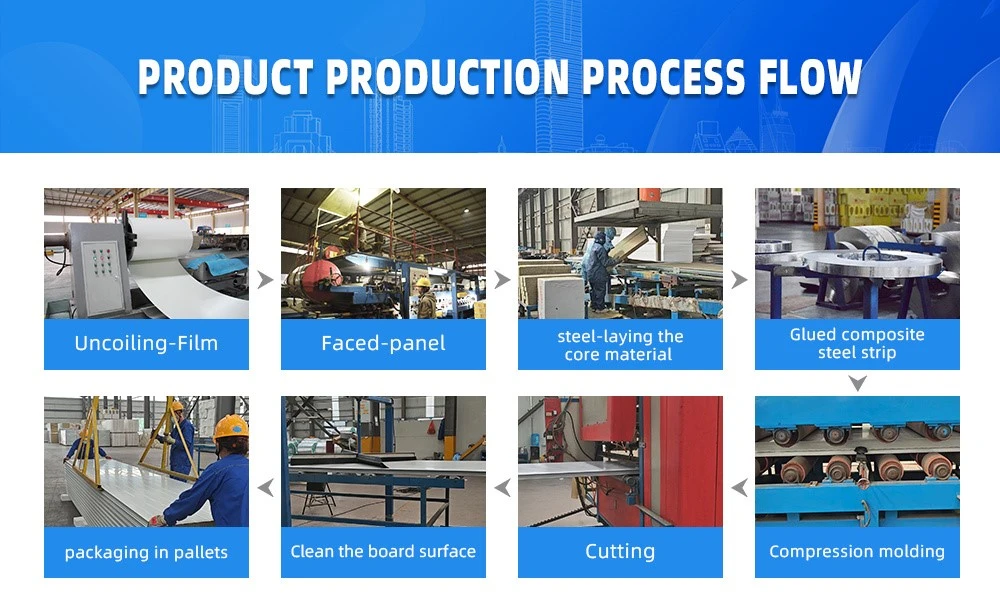

Factory Production Process
Technical Support
Professional Product Selection
Our engineers and project consultants provide professional recommendations based on building applications, fire protection requirements, insulation, and sound insulation needs, helping customers select the right rock wool panel specifications.
Manufacturer Support with Customized Solutions
With strong in-house production capabilities, we provide customized panel sizes, steel sheets, and coating options, along with professional technical solutions based on project requirements.
Project Support from Start to Installation
We provide product specifications, technical documents, and installation guidance to ensure smooth project implementation.
FAQ
Q: Why choose rock wool as wall sandwich panels core?
A: Using Class A non-combustible rock wool as the core material, the panel provides excellent fire resistance, thermal insulation, and sound insulation, offering a reliable and cost-effective solution for fire-sensitive buildings.
Q: How to choose the thickness of rock wool sandwich panels
A: Rock wool density is usually 80-120 kg/m³. 100 kg/m³ is the most commonly used option with better cost efficiency. The density can be selected based on project requirements.
Q: Where are rock wool sandwich panels used?
A: They are widely used in industrial buildings, warehouses, clean rooms, food processing facilities, pharmaceutical workshops, and other fire-rated applications.
Q: Can the steel sheet and coating be customized?
A: Yes. Steel thickness, color, coating system, and steel coil brands can be customized according to project requirements.
Q: How do you ensure the service life of the panels?
A: We cooperate with well-known steel coil brands in China and support specified brands and customized coating systems. High-quality steel sheets improve weather resistance and corrosion protection, extending building service life.
Q: How do you ensure product quality?
A: Our products are certified with ISO quality management system and CE certification. With a CNAS-certified laboratory, we control quality from raw materials and production to final inspection before shipment.
Contact us for rock wool sandwich panel specifications and pricing.
Payments:30% T/T in advance,balance before delivery.
Packaging:Sandwich panels in pallets with corner protector,PE film wrapped.
Delivery:The production following your projects based on the accurate quantities.
